A compact folding e-bike for everyday journeys. The low step-through frame and removable battery make storage and charging practical, while hydraulic disc brakes and a seven-speed drivetrain support a versatile ride.
Features
- Folding step-through frame
- Removable Samsung battery
- Suspension fork and integrated rear rack
Technical specifications
| Manufacturer-listed top speed | Up to 28 mph; default speed setting: 20 mph. |
|---|---|
| Rated motor | 48V 750W |
| Peak motor output | 1000W |
| Battery | 48V 15Ah / 720Wh, Samsung cells |
| Manufacturer maximum assisted range | Up to 60 miles |
| Charging time | 4–6 hours |
| Tires | 20 × 3.0 inches |
| Assist sensor | Cadence |
| Drivetrain | Shimano 7-speed |
| Weight with battery | 65 lb |
| Maximum payload | 400 lb |
| Frame | 6061 aluminum alloy |

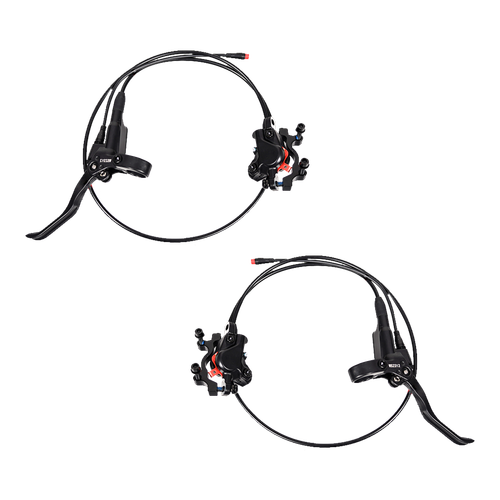

| Brakes | Front and rear hydraulic disc brakes |
| Display | Full color |
| Battery chemistry | Lithium-ion |
Range is a manufacturer estimate, not a guarantee. The manufacturer’s stated test basis uses a 120 lb rider, PAS 1/Eco mode and flat roads; actual range varies with load, terrain, weather and riding style.
Dimensions and rider fit
| Handlebar height | 43.3–48 inches |
|---|---|
| Wheelbase | 46 inches |
| Total length | 65.3 inches |
| Rear rack height | 25.6 inches |
| Reach | 25.2 inches |
| Standover height | 14.6 inches |
| Folded height | 27.6 inches |
| Folded length | 34.7 inches |
| Folded width | 11.8 inches |
Manufacturer rider-height guidance: 5′1″–6′3″. Confirm inseam, reach and comfort with a test fit.
Factory colors
Turquoise, Yellow, Red, Wild Green
Warranty
The manufacturer’s published limited warranty provides two years of coverage for manufacturing defects on new bikes purchased on or after July 1, 2023, for the original retail purchaser in the United States. It covers replacement parts, excludes labor, diagnostics, normal wear and misuse, and is non-transferable. Approved replacement parts receive standard ground shipping within the United States. Claims require proof of purchase and the bike serial number. Contact Bell Electric Bikes for the full warranty terms and claim assistance.
Delivery
Free delivery to the lower 48 states only. Shipped after payment is received.
